10 Usage Limit Reached Screen Examples

01. Show the meter before zero

Show the meter before zero.

A limit is easier to accept when users can predict it.

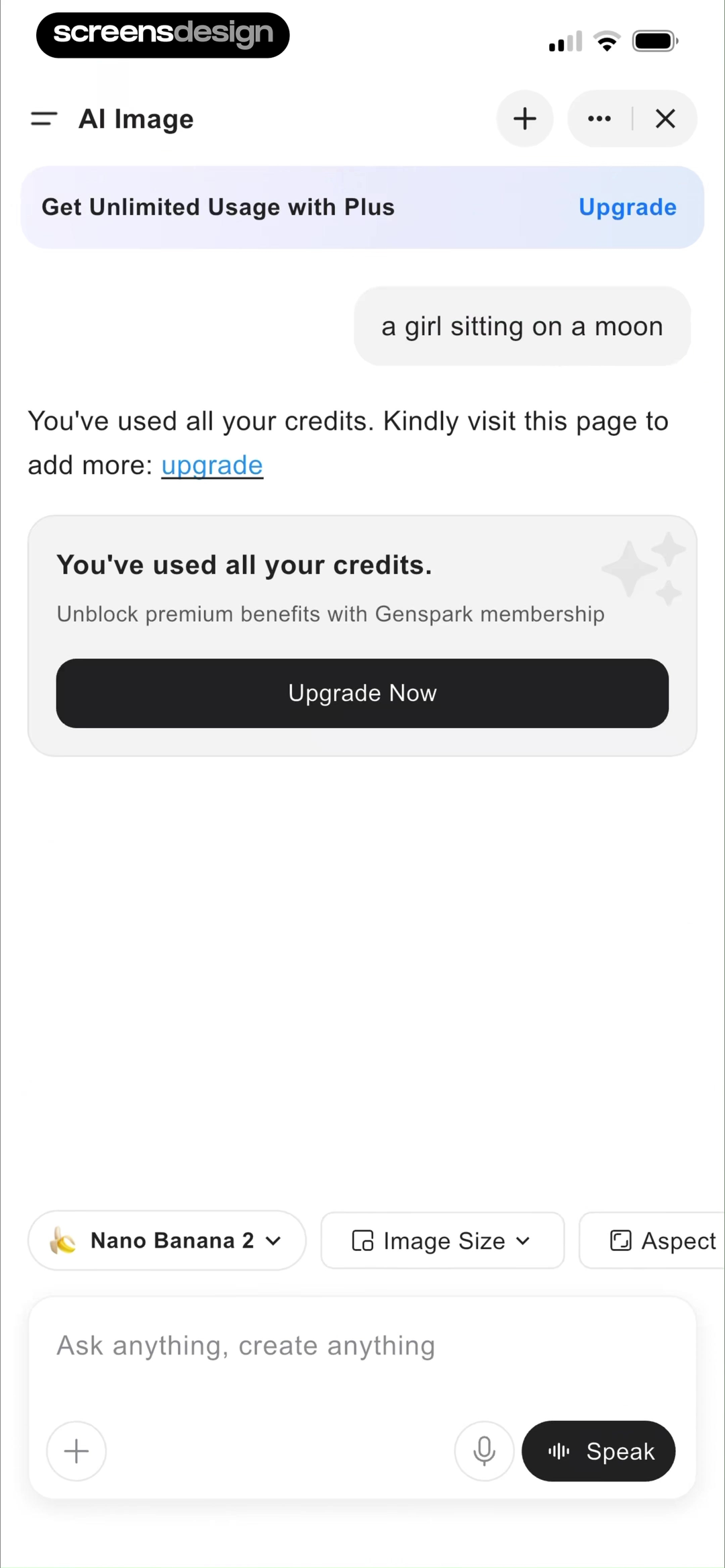

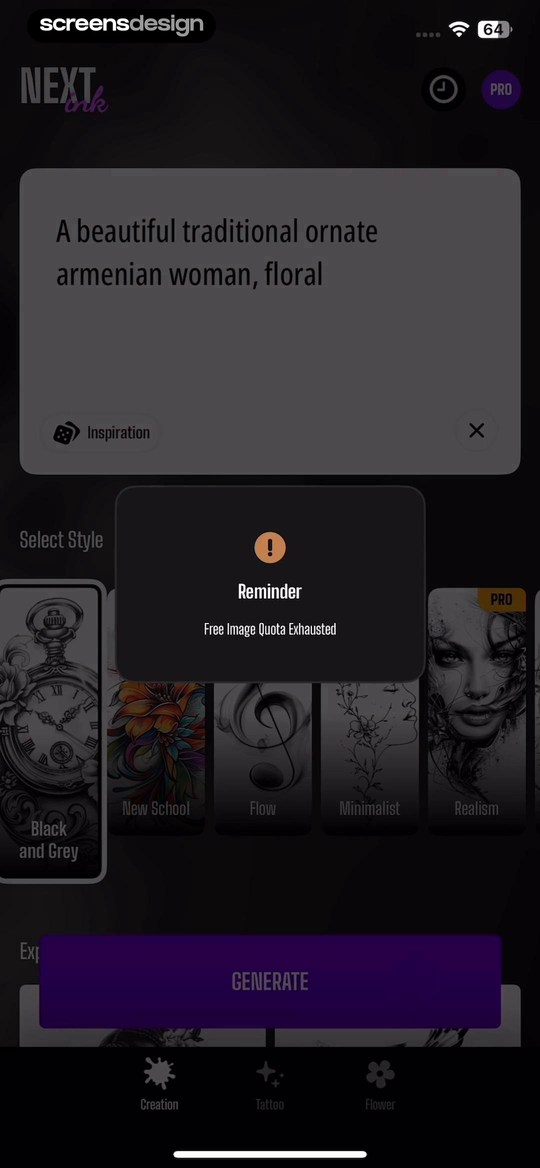

In Genspark AI Workspace, the interface names "AI Image" and "Get Unlimited Usage with Plus". Next Ink: AI Tattoo Design pairs "NEXT ink" with "A beautiful traditional ornate armenian woman, floral". Together, the two recorded screens make show the meter before zero concrete: A limit is easier to accept when users can predict it. The comparison is useful as interface evidence, but it does not show which product converted, retained, or satisfied more users.

Expose remaining and total allowance near the metered action, especially when one task consumes multiple units. Explain the reset period and whether unused units roll over. Put the account fact before persuasive language, keep the primary action tied to the user's current job, and show a safe route out. When a price, date, allowance, or entitlement is involved, it should come from the same verified source that enforces the product behavior.

Reconcile cached counts, concurrent devices, queued jobs, and refunds for failed work. Write loading, empty, pending, success, failure, and stale-state copy before polishing the ideal screen. Preserve user input and navigation across external checkout or account management, then refresh the interface without requiring a restart.

02. Name what was exhausted

Name what was exhausted.

Credits, messages, minutes, and concurrency are different limits.

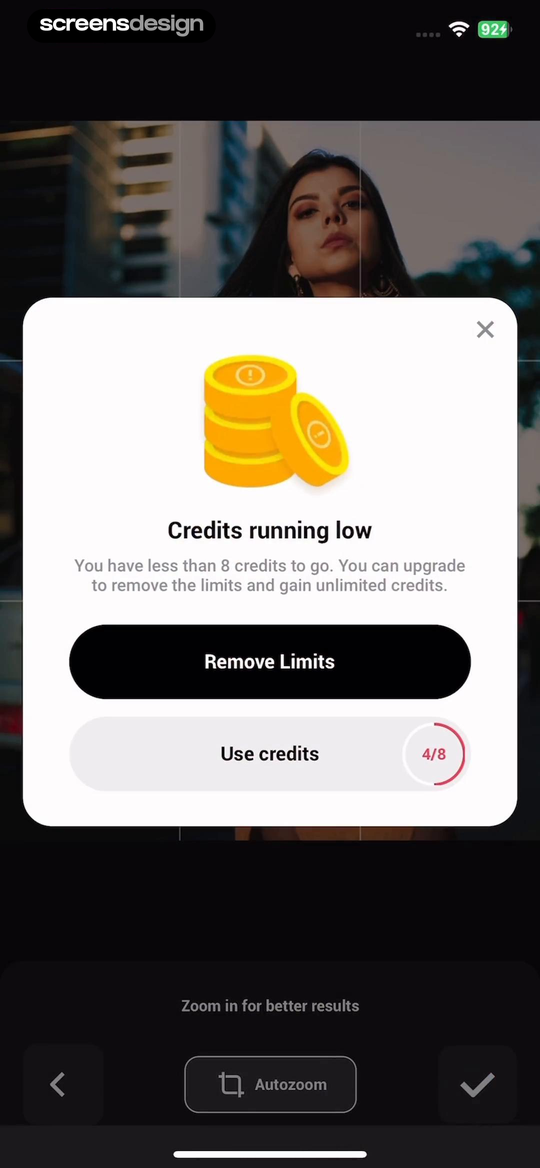

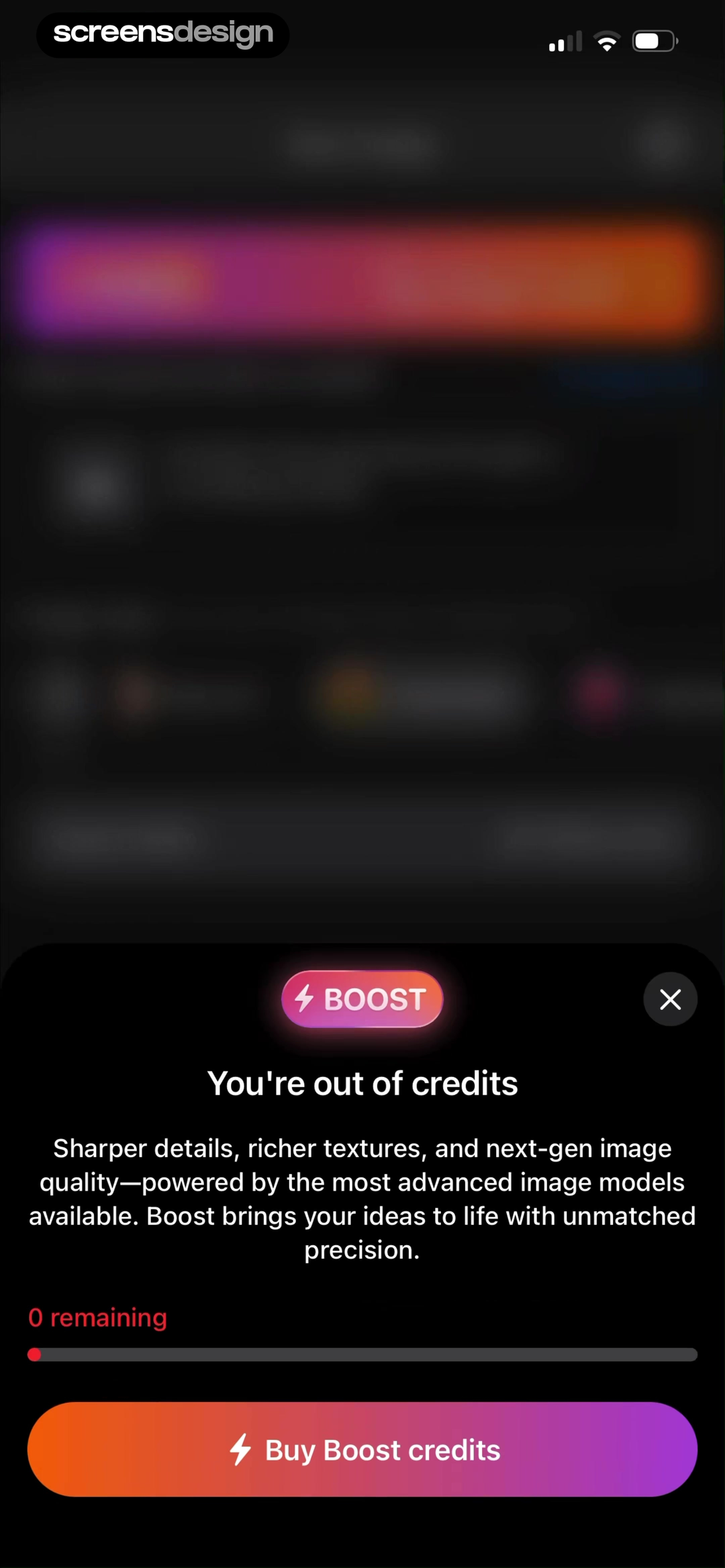

In AI Chatbot: Pixi, the interface names "You're out of credits" and "0 remaining". Creati: Gen AI Content Creator pairs "Credits running low" with "Remove Limits". Together, the two recorded screens make name what was exhausted concrete: Credits, messages, minutes, and concurrency are different limits. The comparison is useful as interface evidence, but it does not show which product converted, retained, or satisfied more users.

State the exact resource and connect it to the attempted action. Avoid a broad out-of-credits message when a different model, shorter output, or later reset remains available. Put the account fact before persuasive language, keep the primary action tied to the user's current job, and show a safe route out. When a price, date, allowance, or entitlement is involved, it should come from the same verified source that enforces the product behavior.

Test compound limits where account balance is positive but a model, speed tier, or task slot is unavailable. Write loading, empty, pending, success, failure, and stale-state copy before polishing the ideal screen. Preserve user input and navigation across external checkout or account management, then refresh the interface without requiring a restart.

03. Preserve the attempted work

Preserve the attempted work.

The prompt, edit, upload, and settings should survive the boundary.

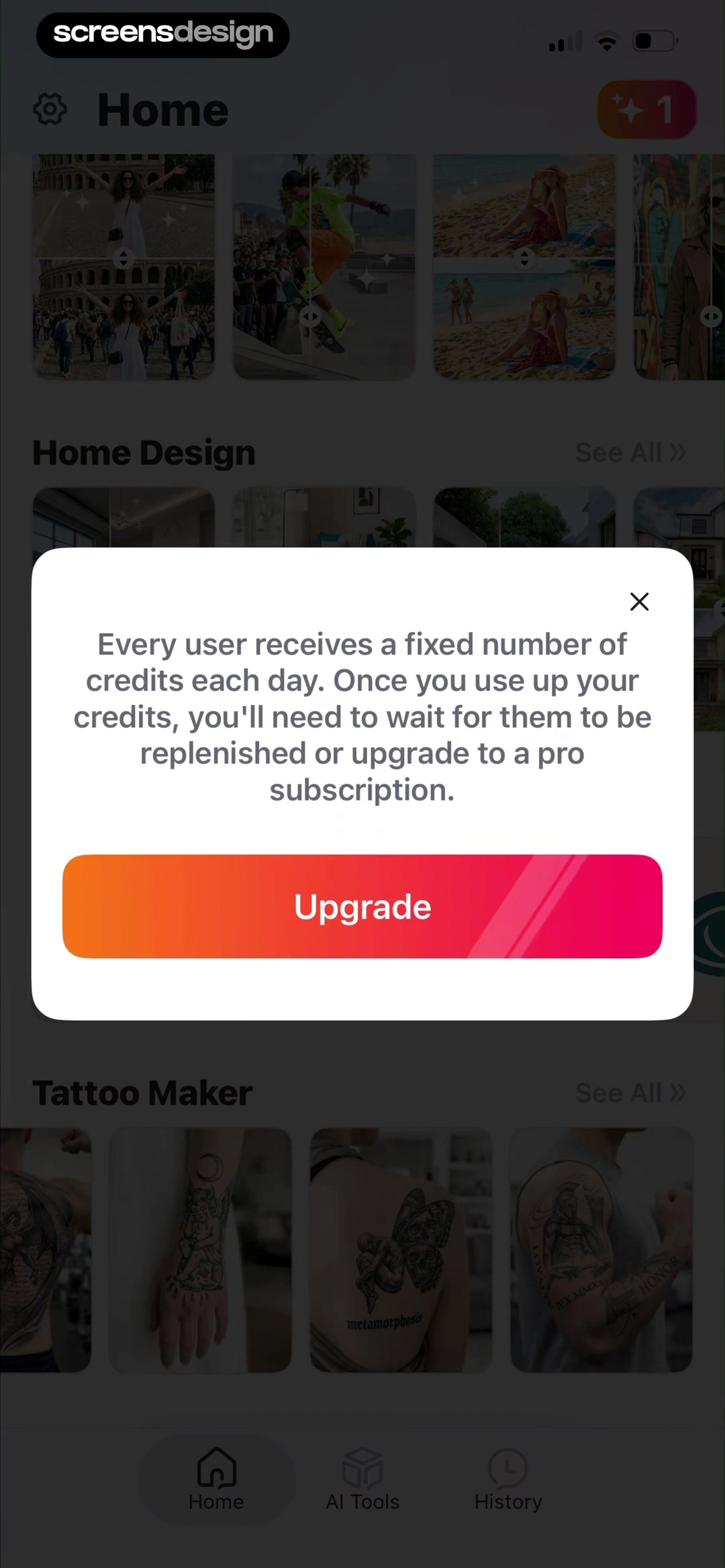

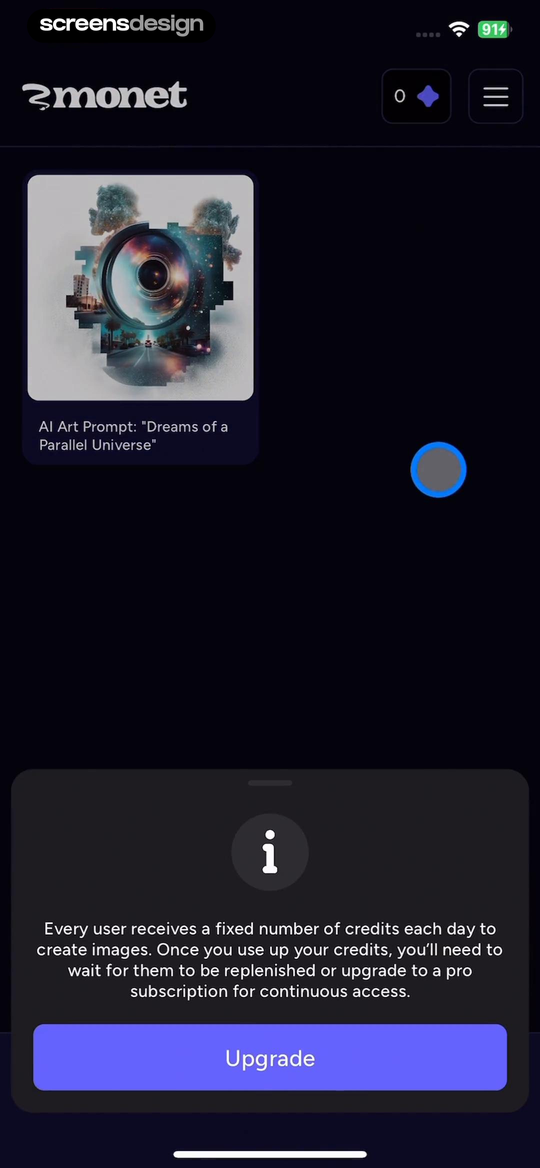

In AI Photo Editor - BgMaster™, the interface names "Home Design" and "See All". AI Image Generator - Monet pairs "AI Art Prompt: "Dreams of a Parallel Universe"" with "account control". Together, the two recorded screens make preserve the attempted work concrete: The prompt, edit, upload, and settings should survive the boundary. The comparison is useful as interface evidence, but it does not show which product converted, retained, or satisfied more users.

Save inputs before showing the limit and resume them after top-up, reset, or upgrade. If the action consumed units but failed, restore the allowance automatically or explain review status. Put the account fact before persuasive language, keep the primary action tied to the user's current job, and show a safe route out. When a price, date, allowance, or entitlement is involved, it should come from the same verified source that enforces the product behavior.

Exercise large uploads, background jobs, network loss, purchase pending, and multiple rapid taps. Write loading, empty, pending, success, failure, and stale-state copy before polishing the ideal screen. Preserve user input and navigation across external checkout or account management, then refresh the interface without requiring a restart.

04. Offer truthful recovery choices

Offer truthful recovery choices.

Wait, use a cheaper option, buy credits, upgrade, or manage usage are not interchangeable.

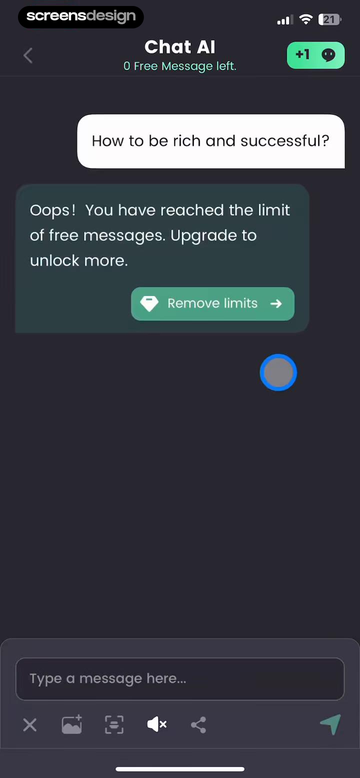

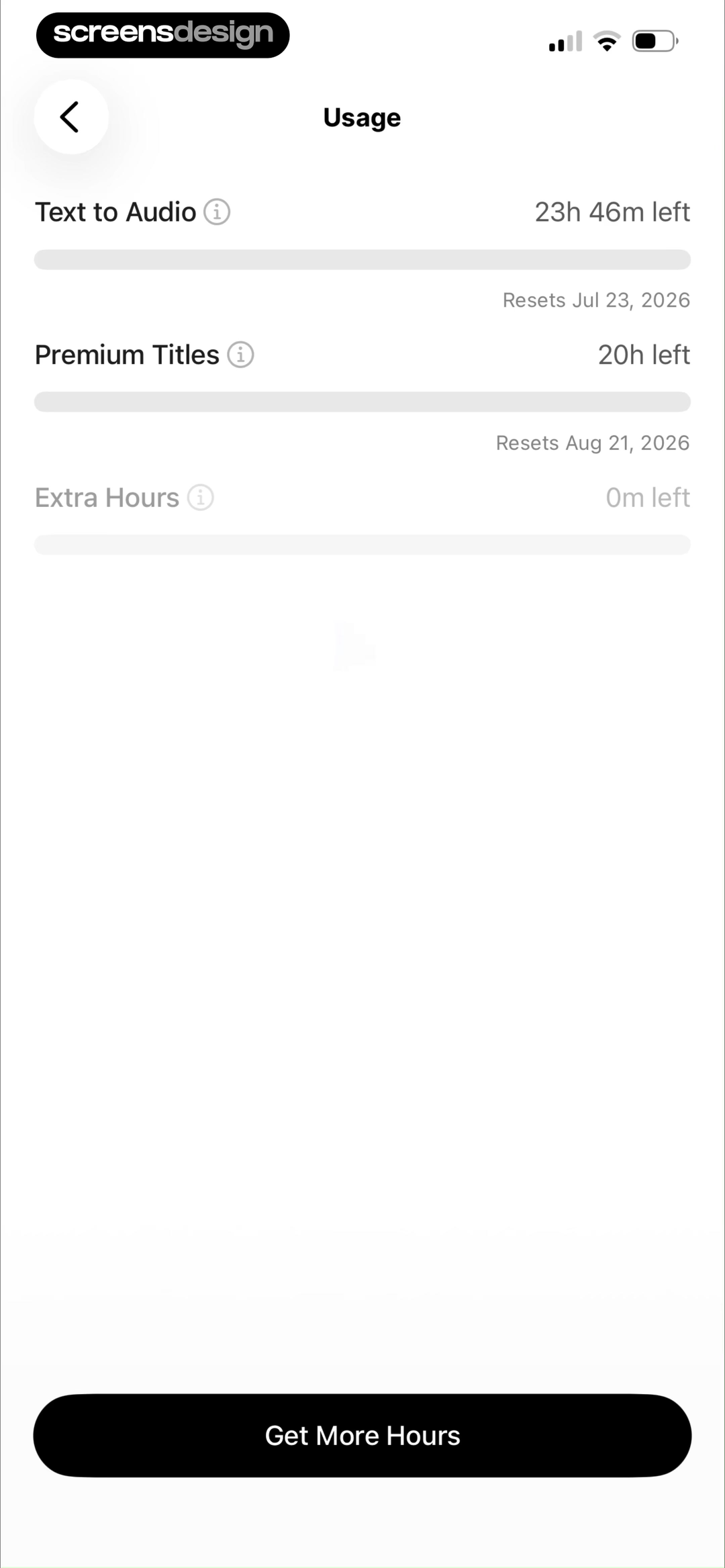

In AI Chat -Ask Chatbot Assistant, the interface names "Chat AI" and "0 Free Message left". ElevenReader: Read Books Aloud pairs "Text to Audio" with "23h 46m left". Together, the two recorded screens make offer truthful recovery choices concrete: Wait, use a cheaper option, buy credits, upgrade, or manage usage are not interchangeable. The comparison is useful as interface evidence, but it does not show which product converted, retained, or satisfied more users.

Order routes by relevance and show price, quantity, expiry, reset, and subscription implications. Keep a safe exit and do not make a subscription appear mandatory when a free reset is imminent. Put the account fact before persuasive language, keep the primary action tied to the user's current job, and show a safe route out. When a price, date, allowance, or entitlement is involved, it should come from the same verified source that enforces the product behavior.

For top-ups, state whether credits expire and which plan or features can consume them. Write loading, empty, pending, success, failure, and stale-state copy before polishing the ideal screen. Preserve user input and navigation across external checkout or account management, then refresh the interface without requiring a restart.

05. Keep limits consistent everywhere

Keep limits consistent everywhere.

The meter, purchase sheet, settings page, and backend ledger must agree.

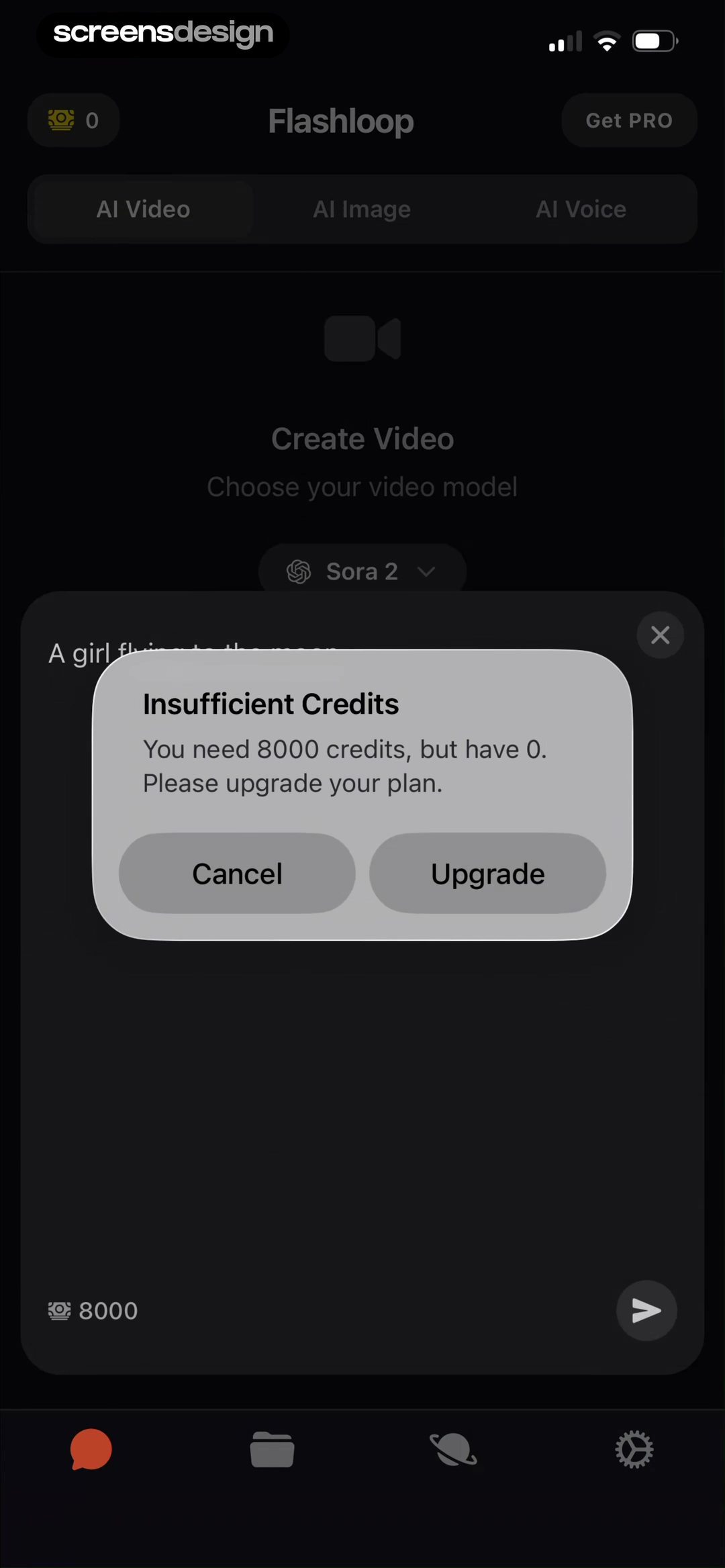

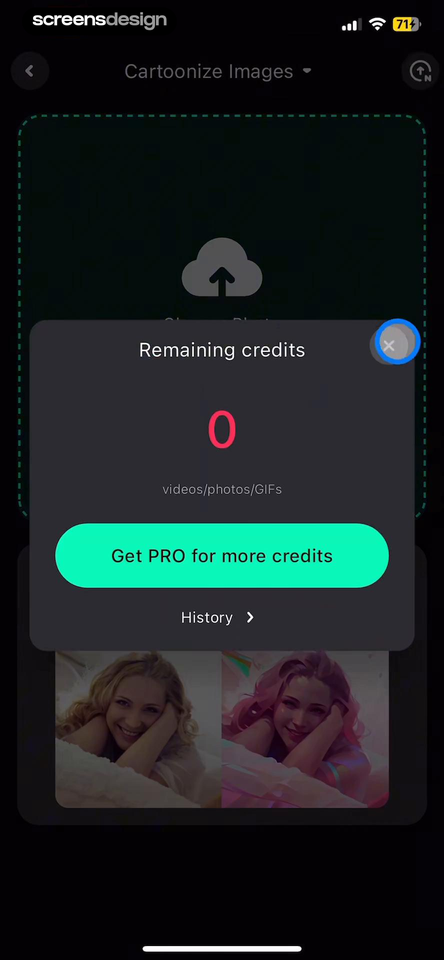

In FaceMagic: AI face swap videos, the interface names "Cartoonize Images" and "Remaining credits". Flashloop: AI Video Generator pairs "Get PRO" with "AI Video". Together, the two recorded screens make keep limits consistent everywhere concrete: The meter, purchase sheet, settings page, and backend ledger must agree. The comparison is useful as interface evidence, but it does not show which product converted, retained, or satisfied more users.

Use one unit definition and rounding rule. After a purchase or reset, update all surfaces and the original task immediately. Put the account fact before persuasive language, keep the primary action tied to the user's current job, and show a safe route out. When a price, date, allowance, or entitlement is involved, it should come from the same verified source that enforces the product behavior.

Monitor negative balances, duplicated grants, delayed webhooks, family or team pools, and account switching. Write loading, empty, pending, success, failure, and stale-state copy before polishing the ideal screen. Preserve user input and navigation across external checkout or account management, then refresh the interface without requiring a restart.

Implementation

Build the interface from account and entitlement truth.

The visual state is reliable only when billing, account identity, product rules, and recovery behavior agree.

Represent allowance as a ledger or authoritative counter with balance, total grant, consumed amount, reset timestamp, unit type, source, expiry, and reservation state. The client can display a cached meter, but the service deciding whether work may start must prevent overspend and duplicate consumption.

Reserve units when expensive work begins, then settle or release them according to outcome. Define what happens on timeout, cancellation, partial output, moderation rejection, provider failure, and retries. A generic error after deducting credits is both a trust and support problem.

Return structured limit reasons such as daily_messages_exhausted, monthly_minutes_exhausted, insufficient_credits, concurrent_task_limit, and model_not_in_plan. Translate them into specific UI copy and available actions. Unknown states should fail safely without inventing a paid requirement.

Persist the attempted action and purchase context. On a verified reset, top-up, or plan change, refresh the balance and resume only with the user's confirmation when the action has meaningful cost.

• ✓Document every account, billing, entitlement, and transition state before implementation.
• ✓Keep prices, dates, limits, products, and available actions sourced from verified data.
• ✓Preserve the initiating task through checkout, restore, external management, and failure.
• ✓Use idempotent purchase and entitlement updates so retries cannot duplicate value.
• ✓Provide accessible status, focus management, error copy, and a safe exit.

Measurement

Measure whether people recover the task, not only whether they pay.

Commercial events need product-completion and trust guardrails.

Track meter exposure, warning threshold, limit reached, chosen recovery route, purchase start and result, reset return, downgrade to a cheaper action, and completion of the original task. Count server-confirmed units rather than client estimates.

Evaluate task recovery, repeat value after purchase, support contacts, disputed consumption, failed-work refunds, negative balances, duplicate grants, and people waiting for a reset. Upgrade rate alone can reward surprising or misleading limits.

Use cohort and usability analysis to test whether users understood the unit, price, and reset. Recorded screens show presentation choices, not evidence that a particular quota improves monetization.

Review checklist

Review the complete state before shipping.

Test the screen with new, active, trialing, pending, canceled, expired, restored, offline, and wrong-account fixtures where they apply. Exercise every external handoff and return path with slow callbacks and interrupted network access.

Compare the rendered copy with the billing catalog and entitlement service. Then repeat the task with VoiceOver or TalkBack, larger text, reduced motion, localized prices and dates, narrow screens, and a user who dismisses the offer.

• ✓The exact unit and remaining balance are visible.
• ✓Cost of the attempted action is known before commitment.
• ✓Reset time, rollover, and expiry are explained.
• ✓Prompts, uploads, and edits survive the limit.
• ✓Failed work releases or refunds reserved usage.
• ✓Wait, lower-cost, top-up, and upgrade routes are truthful.
• ✓All balances refresh from one authoritative source.
